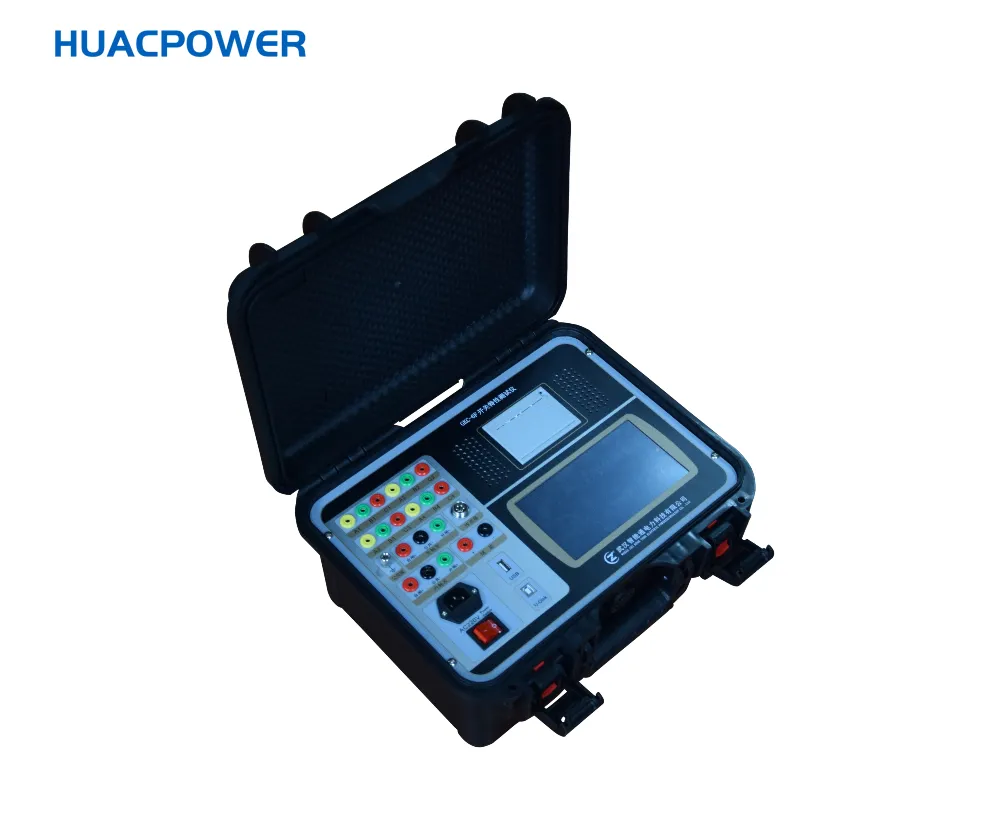

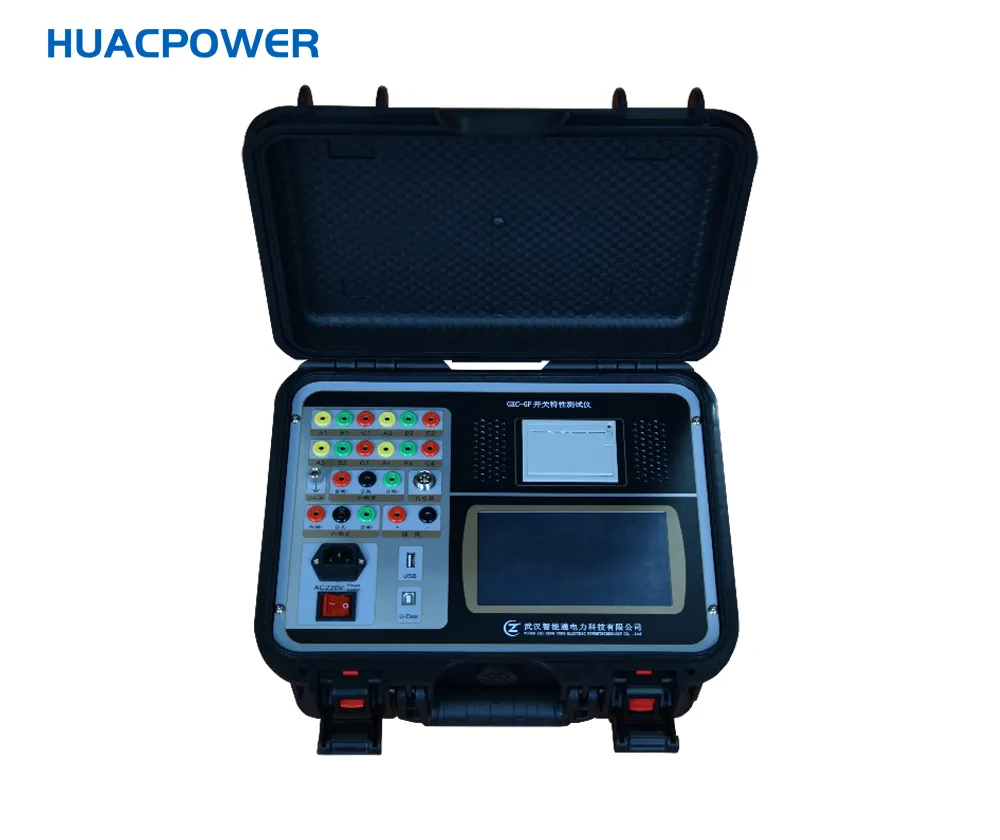

Performance Characteristics

1) Time: Inherent opening and closing times for all 12 circuit breakers, including phase-to-phase and phase-to-phase synchronization.

2) Reclosing: Closing-opening, opening-closing, and opening-closing-opening processes for each circuit breaker: first opening time, first closing time, second closing time, short-term closing time, and no-current time.

3) Bounce: Closing bounce time, number of bounces, bounce process, and bounce waveform for each circuit breaker; opening bounce amplitude for each circuit breaker.

4) Speed: Initial opening and closing speeds, maximum speed, and time-stroke characteristic curve.

5) Stroke: Total stroke, opening distance, overtravel, overshoot stroke, and bounce amplitude.

6) Current: Opening and closing current values and waveforms for the opening and closing coils. 7) Operating voltage: The machine provides a DC 0～300V/20A digitally adjustable circuit breaker operating power supply, automatically completes the low voltage operating test of the circuit breaker, and measures the operating voltage value of the circuit breaker.

Technical Specifications

1) Insulation Resistance > 2MΩ

2) Dielectric Strength: Withstands 1.5KV power frequency for 1 minute against the chassis without flashover or arcing.

3) Time: Range 20000.0ms, Minimum resolution 0.01ms

Error ① 200ms range: 0.01ms ± 2 digits

② 2000ms range: 0.1ms ± 2 digits

③ 20000ms range: 1ms ± 2 digits

4) Speed: Range 20.00m/s, Resolution 0.01m/s

Error ① Within 0-2m/s: ±0.1m/s ± 1 digit

② Above 2m/s: ±0.2m/s ± 1 digit

5) Current: Range 10.00A, Resolution 0.01A

Output Power: DC 0～300V digitally adjustable/20A (instantaneous operation), resolution 1V.
